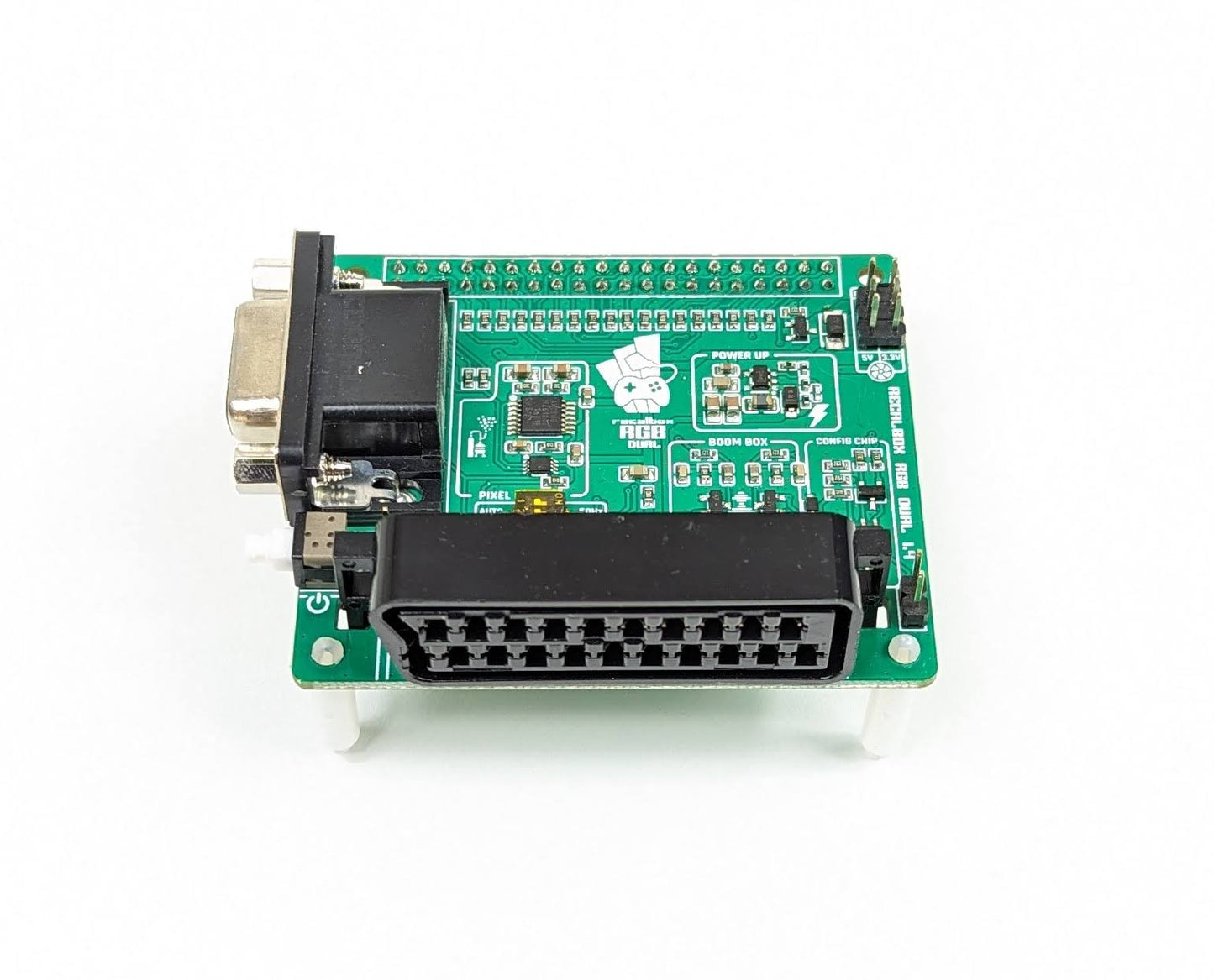

Recalbox RGB DUAL

Official Dual RGB Recalbox, compatible with Raspberry Pi 4, 3, Zero 2 and 400.

Scart + VGA output, supports 15kHz and 31kHz, 240p, 480p, 60Hz/50Hz, Stereo sound.

---------------

After the great success of the kickstarter, Recalbox RGB Dual is once again available for sale!

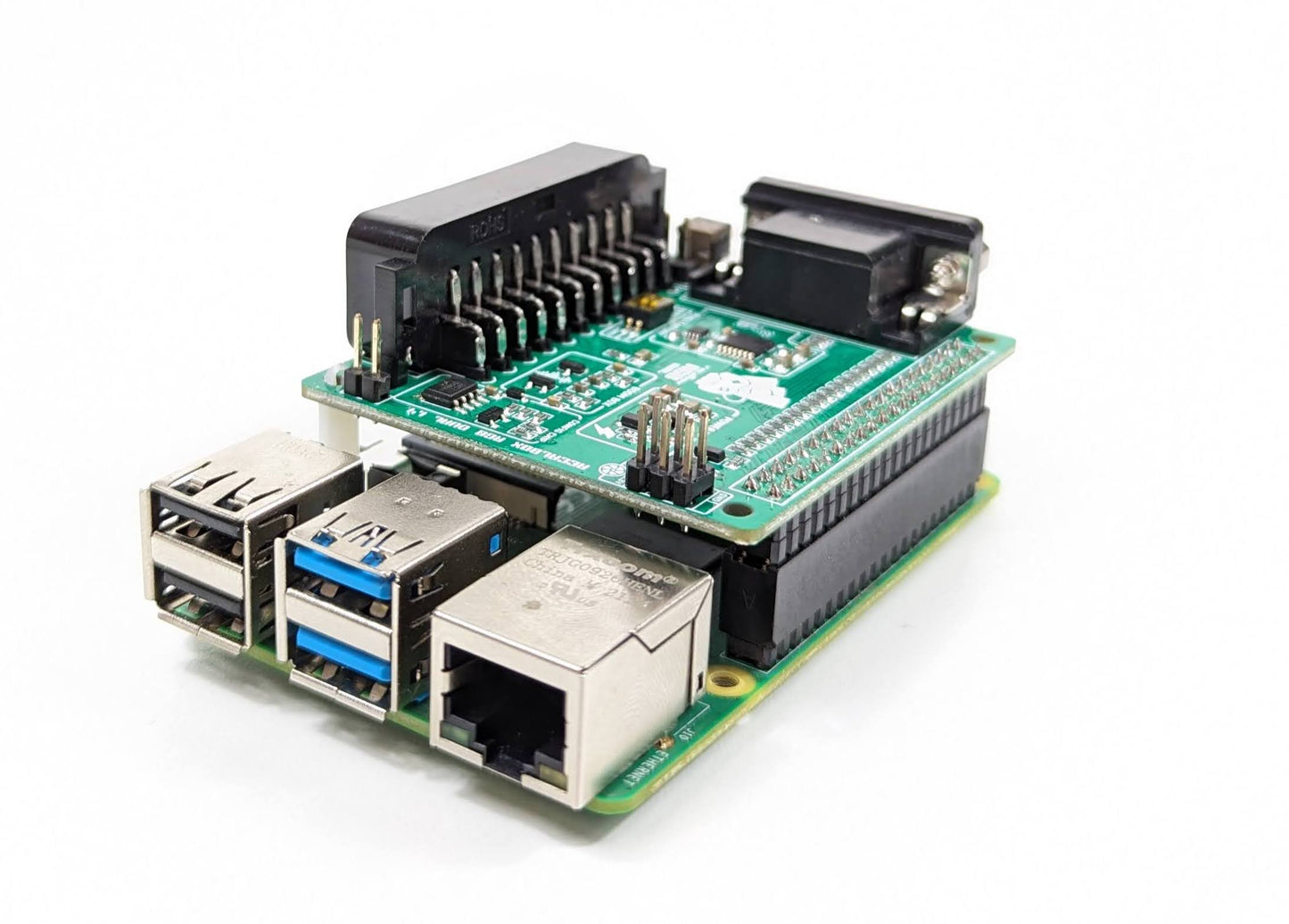

Add a scart output and a VGA output to your Raspberry Pi 4, 400, 3 or Zero 2 and enter the pixel-perfect experience!

LINK TO FULL PROJECT DESCRIPTION

Recalbox RGB Dual lets you play all Recalbox-compatible games on a TV or CRT monitor.

And all in a Plug And Play experience!

Technical specifications:

• 6-bit RGB signal per channel
• pure CSYNC, per logic gate (SCART)
• HSYNC + VSYNC (VGA)
• 15kHz and 31kHz signals available on SCART and VGA
• Audio filter
• Stereo sound
• 5V and 3V fan power supply
• 50Hz TV compatible
• Display mode selection via hardware switch

Contains :

• 1 Recalbox RGB DUAL
• Raspberry Pi not supplied.
