Pre-order: Recalbox JVS

⚠️ Pre-order – Scheduled for delivery in December 2026

The Recalbox solution for JVS arcade cabinets and the Raspberry Pi 5!

Following the RGB JAMMA and RGB JAMMA 2, Recalbox is now bringing support to arcade cabinets that use the JVS standard.

Naomi Universal Cabinet, New Net City, Net City, Vewlix, NoirCab, Lindbergh, Windy 2, and many others.

Bring your arcade cabinet back to life with the simplicity of Recalbox. Plug it in, turn it on, and play!

Connect the Recalbox JVS in place of your cabinet’s original system and enjoy the Recalbox ecosystem: 2D and 3D arcade games, Naomi, Atomiswave, Dreamcast, consoles, microcomputers, and much more.

The arcade cabinet is automatically detected, and setup is done directly from your screen.

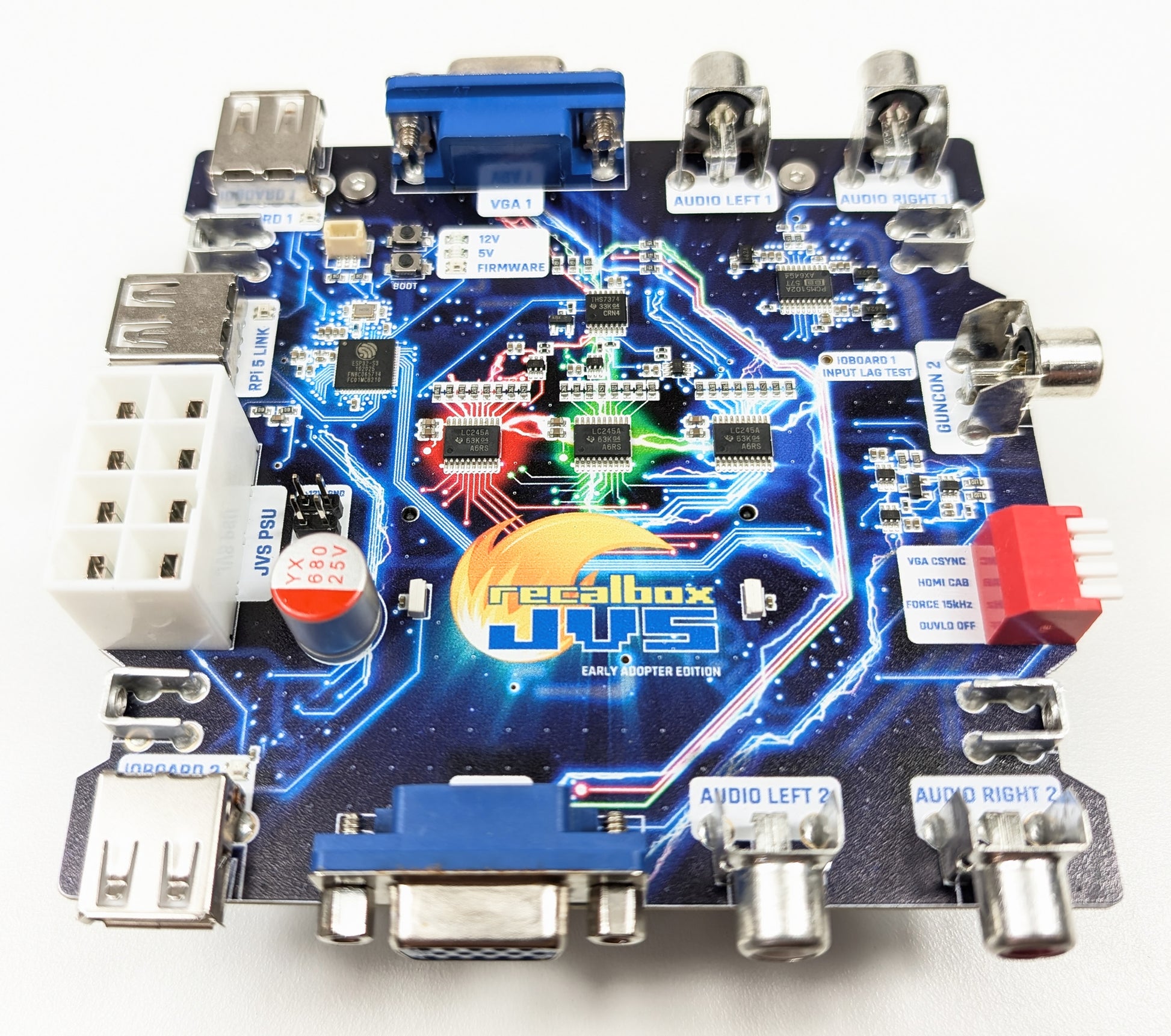

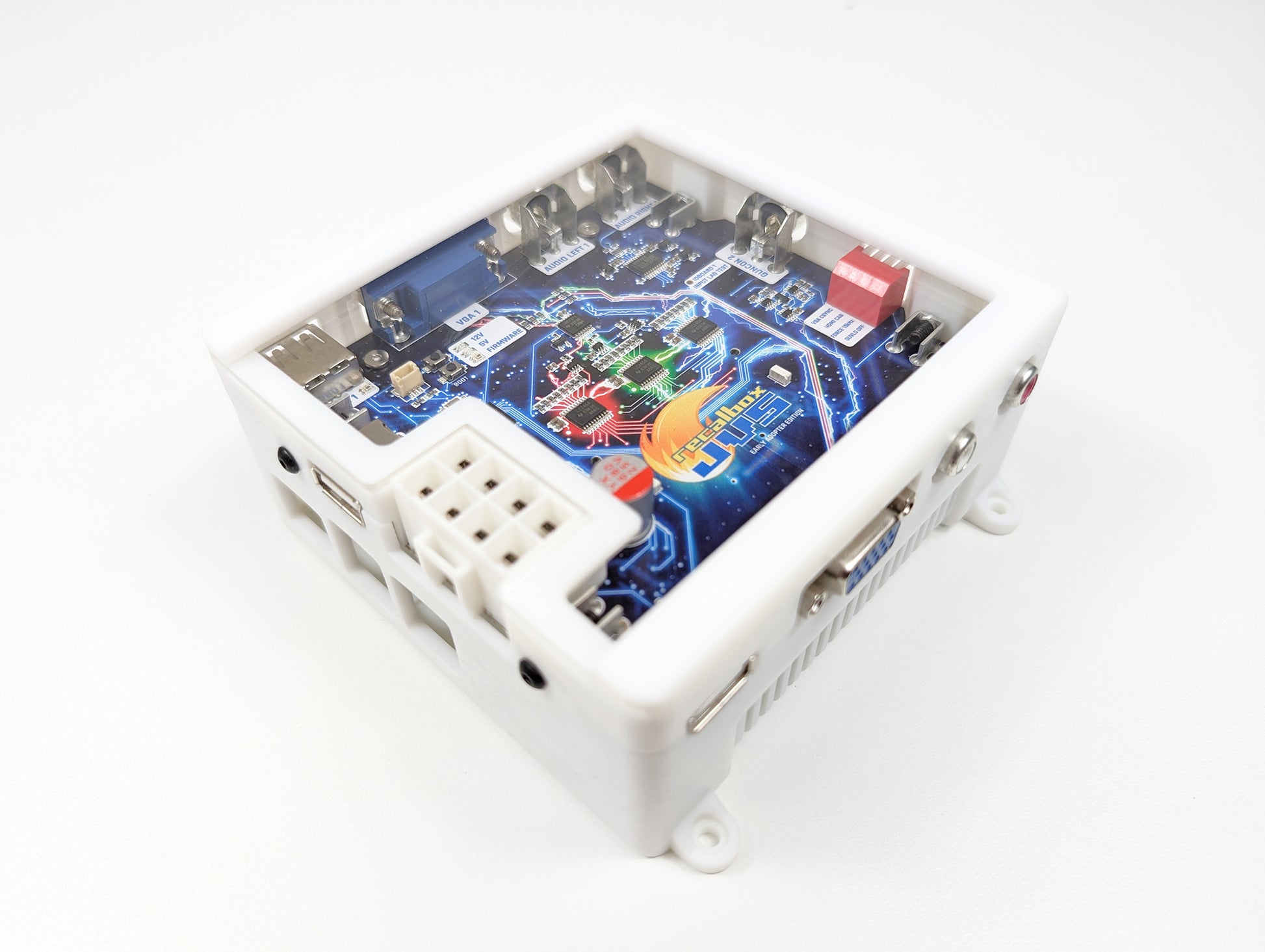

Recalbox JVS:

• Plug and Play: designed specifically for JVS arcade cabinets

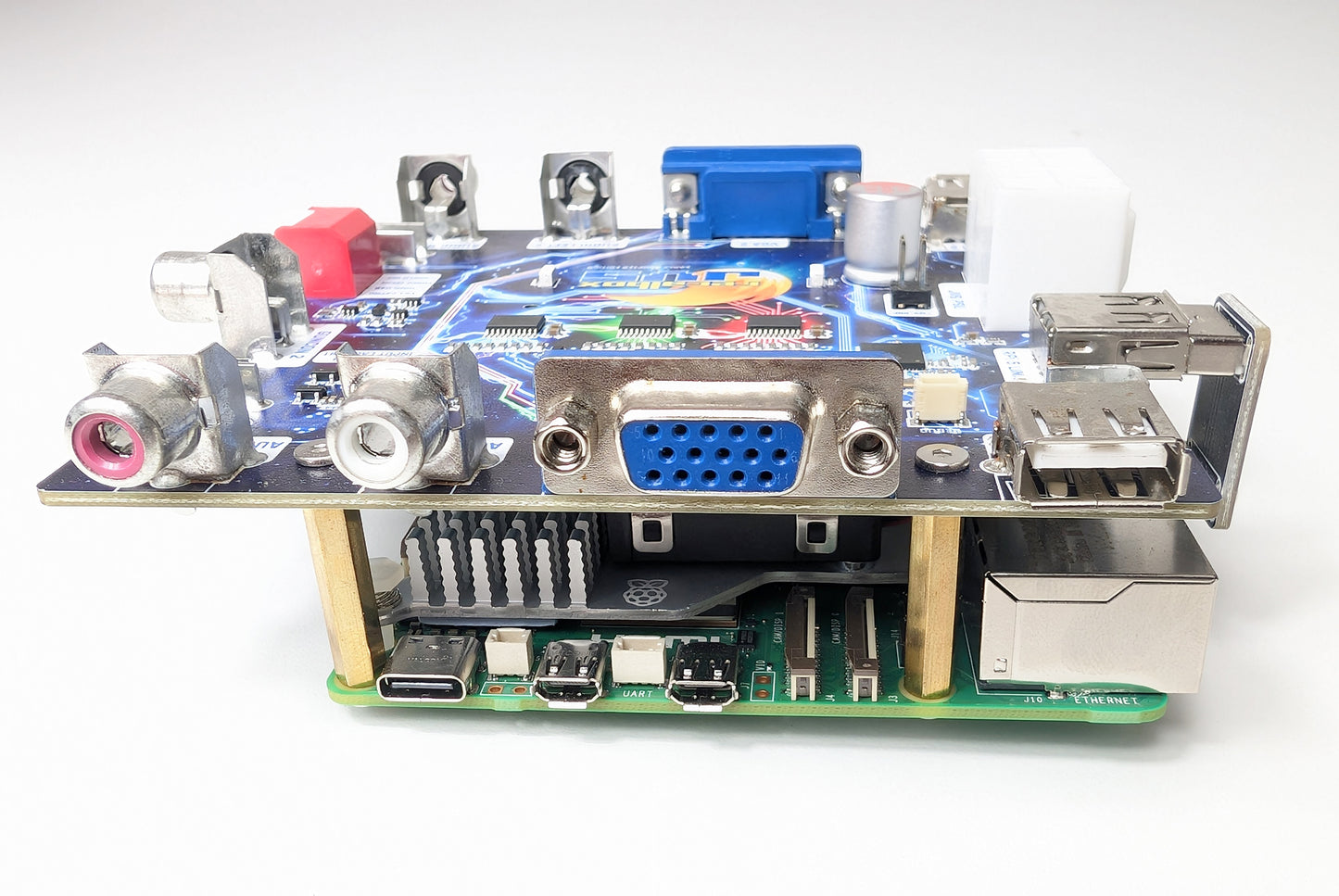

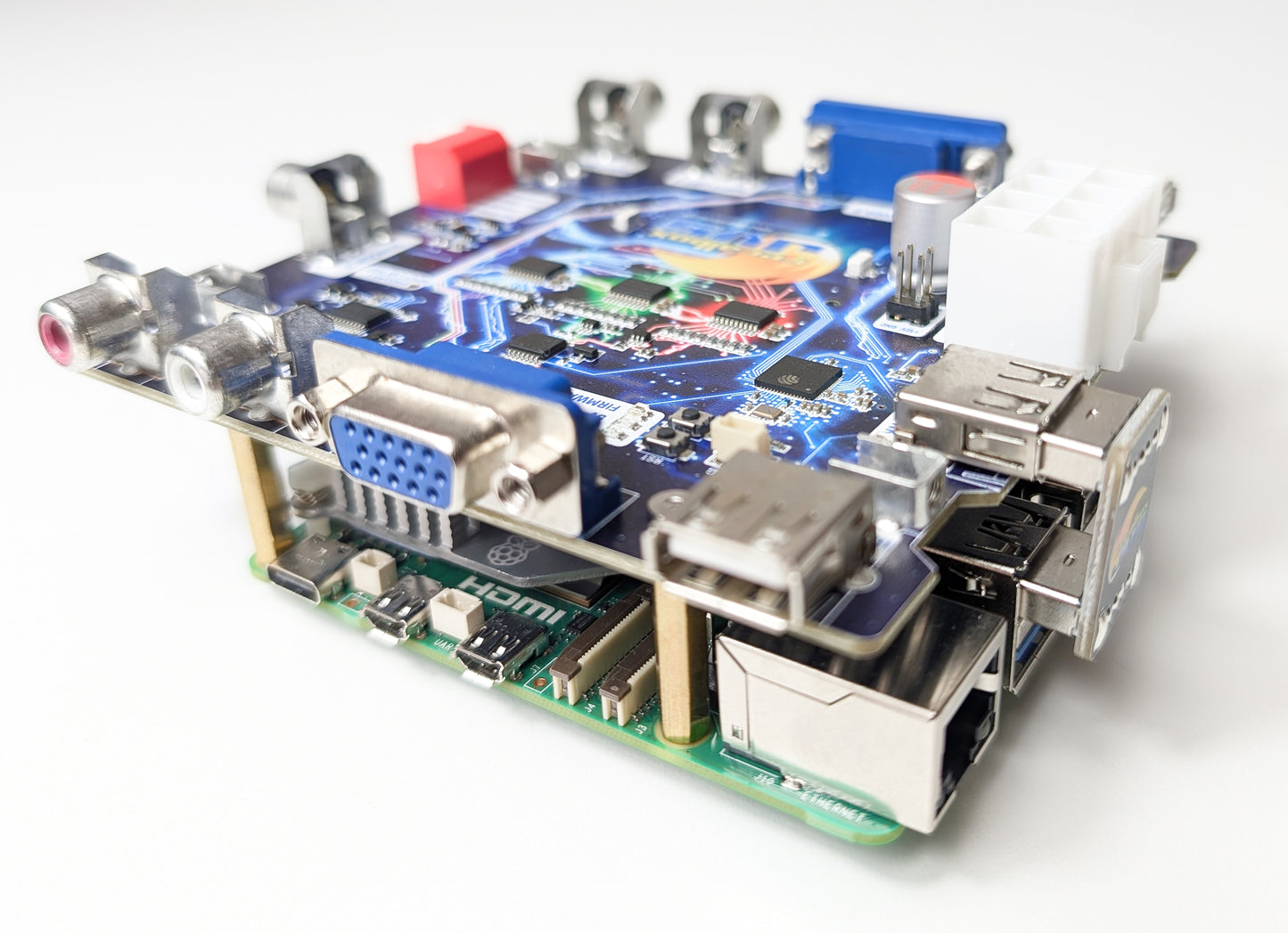

• Raspberry Pi 5 compatible
• Connects to your arcade cabinet with just 5 cables
• JVS communication via RS-485
• 24-bit RGB DAC with dedicated buffers
• Automatic video compatibility at 15 / 24 / 31 kHz
• HDMI output for arcades equipped with an LCD screen
• I2S audio DAC up to 384 kHz / 32-bit
• Less than 1 ms input lag
• Support for multiplayer configurations
• Support for JVS peripherals such as steering wheels and light guns
• Real-time monitoring of +5 V and +12 V voltages
• Built-in tools for testing controls, video, and audio
• Playtime counter

240pGrid:

Does your arcade cabinet only run at 31 kHz?

240pGrid mode allows you to achieve a 15 kHz-inspired display on a 31 kHz CRT screen, complete with scanlines and adapted pixel geometry.

Ideal for enjoying 2D arcade classics on a 31 kHz cabinet while maintaining an authentic CRT look.

Link Mode:

Link Mode lets you control two JVS arcade cabinets with a single Recalbox JVS.

Each cabinet retains its own video output, audio output, and IOBoard.

Perfect for 1-on-1 fighting games, but also for multiplayer setups with up to 4 simultaneous players.

Recalbox JVS is THE Recalbox solution to bring your JVS arcade cabinet back to life with a Raspberry Pi 5.

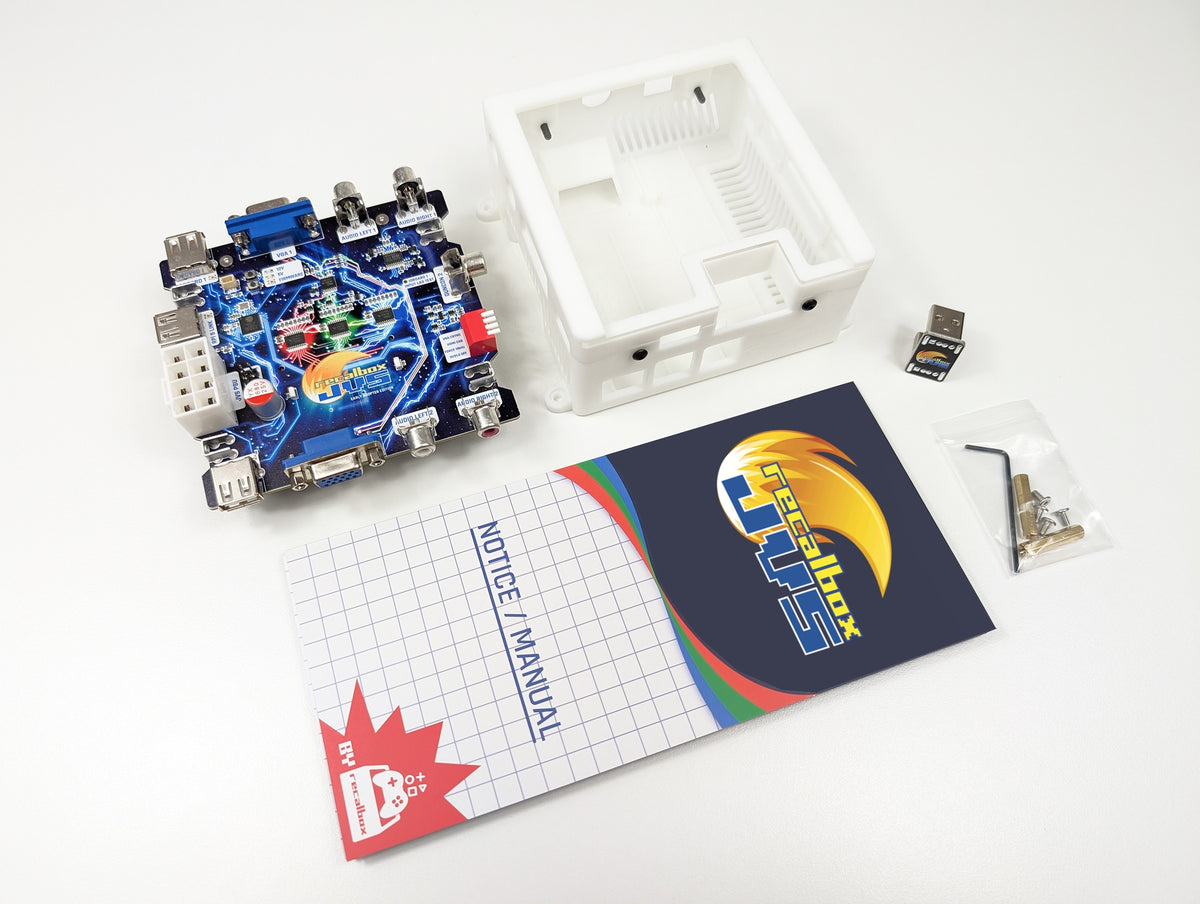

Kit without PI5 Includes:

• Recalbox JVS

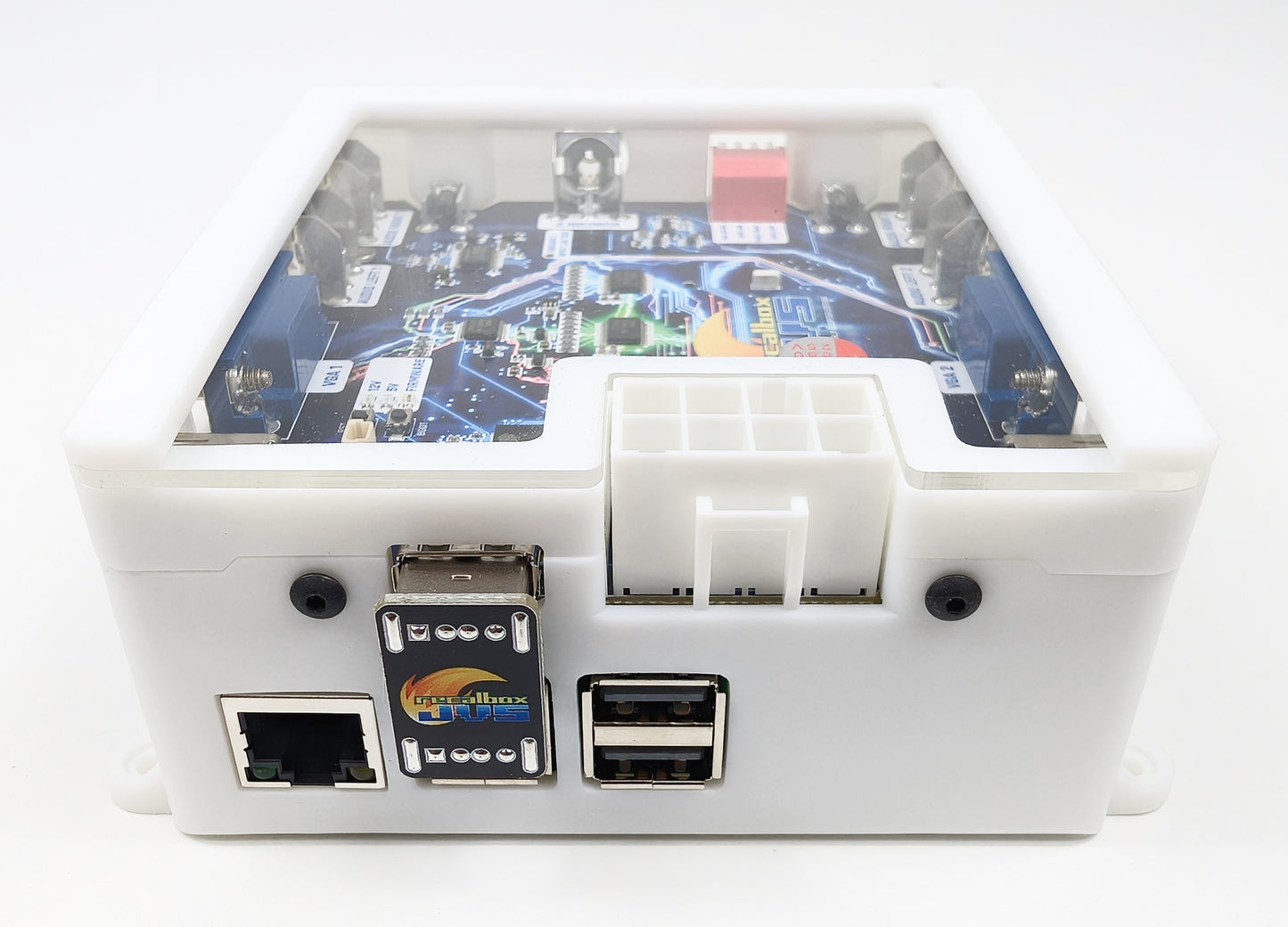

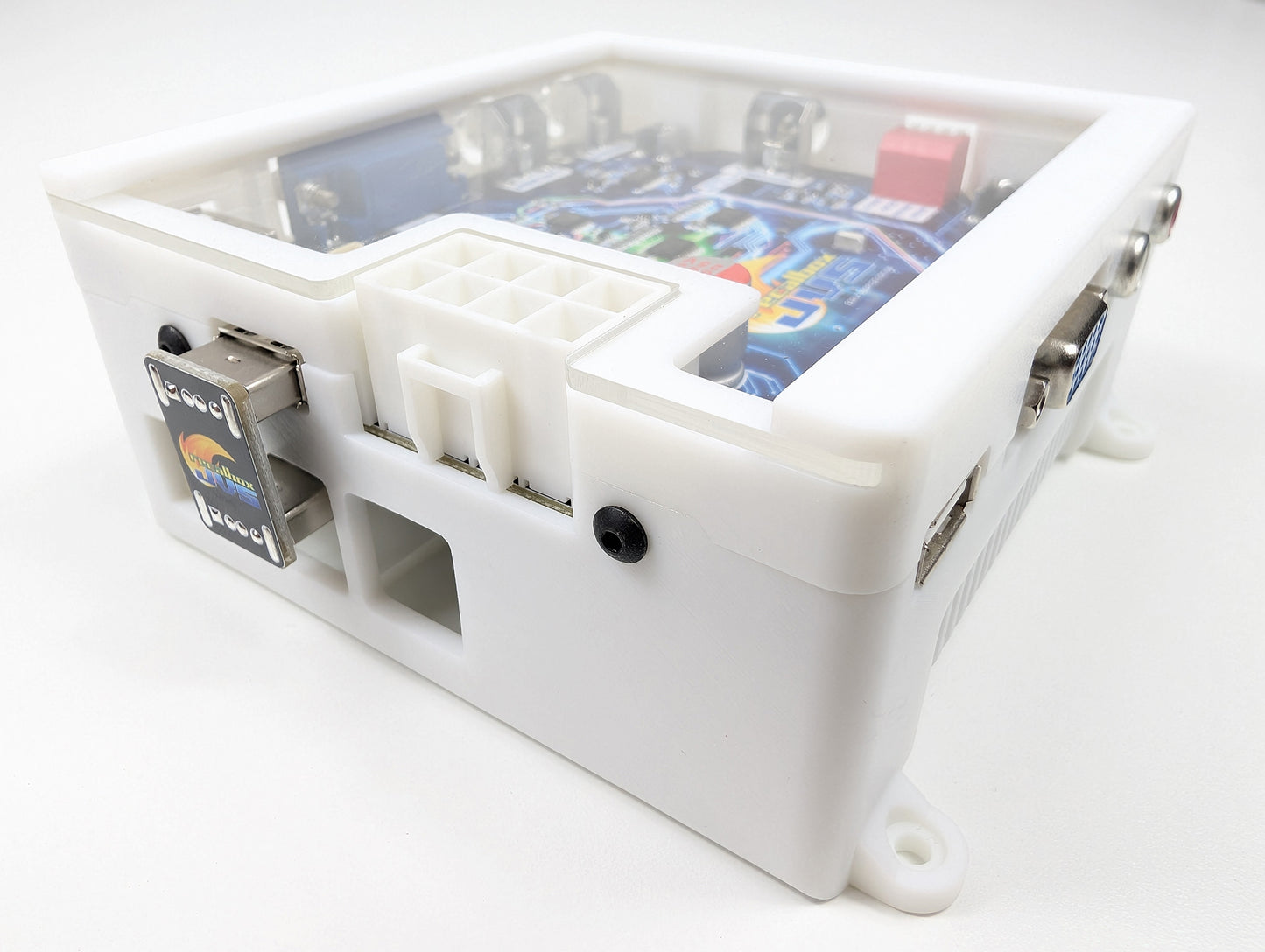

• White case, resin-printed
• Screws and nuts
• USB Bridge
• Instruction manual

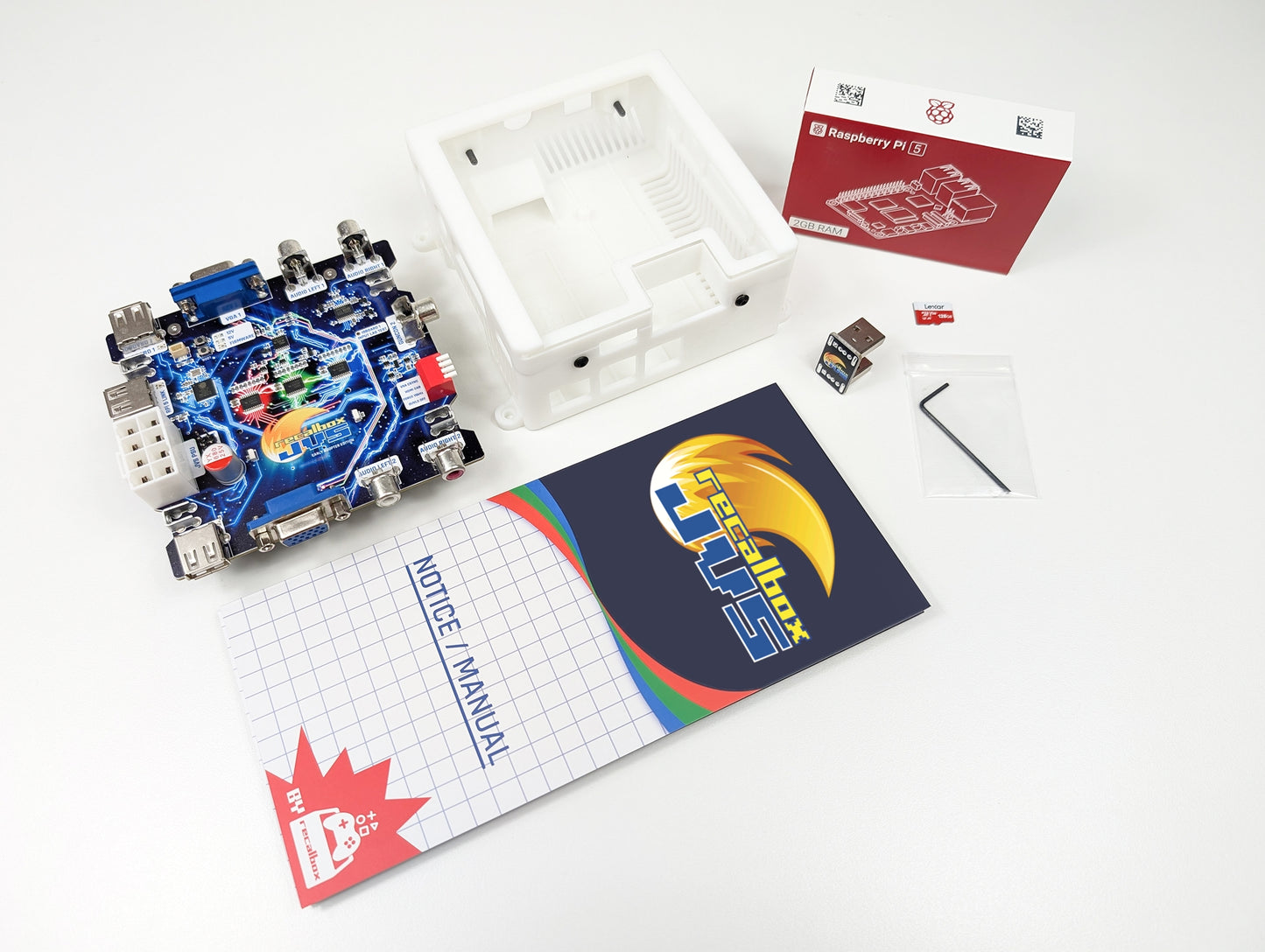

Kit with PI5 and SD card Includes:

• Recalbox JVS
• White case, resin-printed
• Raspberry Pi 5 (2GB) + fan
• Lexar SD card (128GB)
• USB Bridge
• Instruction manual
